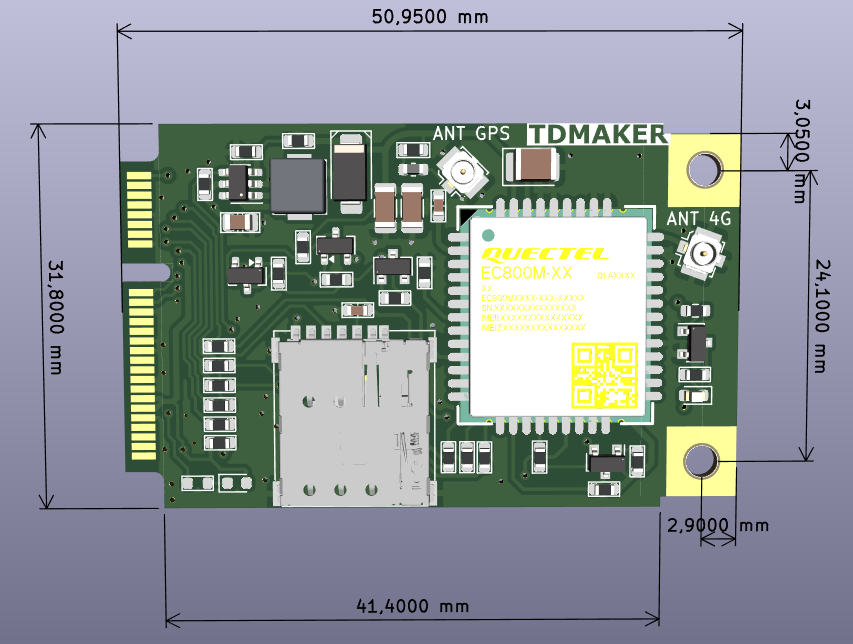

TDM2410-Mini PCIe 4G EG800K Module

Trang chủ > Wiki Docs > 3G-4G-5G-GPS Module > Quectel EG800K Series > TDM2410-Mini PCIe 4G EG800K Module

Mini PCIe 4G LTE CAT 1 IoT Module Quectel EG800K EC800M is an alternative to the aging EG25-G EC20 EC25 Mini PCIe EG25 4G IoT Module. Uses LTE Cat 1 technology according to the 3GPP Rel. 11 standard and has a standard PCI Express Mini Card (Mini PCIe) standard, with a 10Mbps LTE cat 1 band suitable for IoT applications, designed to be easy to install on PCs, routers, embedded computers, or IoT devices that need a 4G + GPS connection.

TECHNICAL SPECIFICATIONS:

Module type: LTE Cat 1 bis (IoT/M2M optimized)
Data Rate:
- Download (DL): Up to 10 Mbps
- Upload (UL): Up to 5 Mbps
Supported Bands (popular EG800K-CN/EC800K-CN versions):
- LTE-FDD: B1 / B3 / B5 / B8 (suitable for Vietnam, Asia)
- LTE-TDD: B34 / B38 / B39 / B40 / B41

Variants list:

TDM2410-EG800K: supports DATA LTE CAT 1 and SMS Only, No VOLTE CALL

TDM2410-EG800AK: supports DATA LTE CAT 1 and SMS Only, No VOLTE CALL

TDM2410-EC800M: supports DATA LTE CAT 1 and SMS, VOLTE CALL

MINI-PCIe Pinout Table List

Pinout Table List
Pin 2,39,41,52	Internal connect On module, Connect to 3.3V
Pin 4	Connect to GND
Pin 1
Pin 38	USB+
Pin 36	USB-
Pin 46	DTR
Pin 8,10,12,14,16,	Internal Sim socket connected & External
17	UART RX
19	UART TX

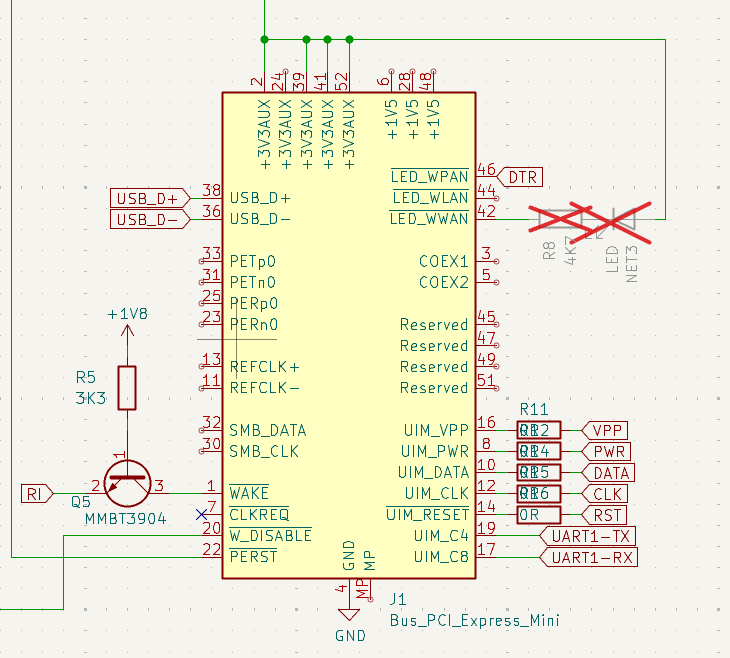

pcie mini pinout schematic detail

This module is a suitable choice for applications that require wireless connectivity in the field of IoT or embedded computers that support Mini PCIE slots. If you need more information or if you need an M2 slot option, we can support custom at low cost.
Currently, we support the standard version of the sim card or the special version using Esim for businesses, if you need a version using ESIM for your project, please contact us for more details.

Other features: Driver support for Windows, RIL for Android, firmware update via USB, support for TCP/IP, SMS, SSL, FOTA, and many other interfaces
